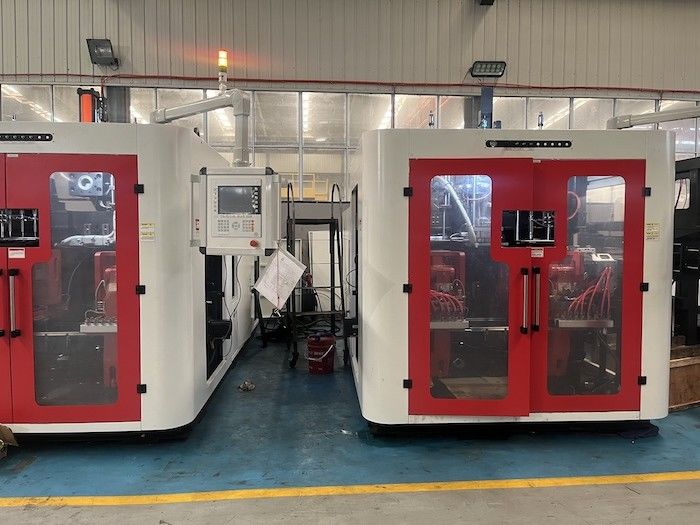

5L MP 70D Customized Plastic Extrusion Machine With Mould Clamping Force 90KN

Product Description:

The MP plastic blow molding machine is specifically designed for manufacturing various plastic hollow products made of high-molecule materials. It is capable of producing hollow products ranging from 5 milliliters to 100 liters in size. These products encompass a wide range such as bottles, pots, jars, barrels, toys, tool boxes, bed boards, desk boards, chairs, and auto parts among others.

The machine is versatile in its ability to handle different materials including PE, PP, PVC, PA, PC, PS, and EVA, offering a perfect processing solution for a variety of plastic products. Whether you need to produce containers, toys, furniture components, or automotive parts, the MP plastic blow molding machine is a reliable choice for fulfilling your manufacturing needs.

Features:

a) The extruding device is equipped with a variable frequency motor that can accommodate the rotational changes of the screw during the blowing process. It is capable of using a screw with a high slenderness ratio to process a variety of materials efficiently, with excellent plasticizing ability, high production output, and low energy consumption. The barrel features a resistance heater controlled by a computer, ensuring quick, stable, and uniform heating.

b) A combined extrusion system between two extrusion machines allows for the installation of different heads, enabling the production of products with a clear strip line or double layers through blowing.

c) The mould clamping device adopts a toggle type and linear guider, providing a double station design that ensures the mould platen moves quickly and steadily.

d) An improved design of the hydraulic oil loop results in power savings, rapid operation, and stability.

e) Installation and maintenance of the hydraulic elements are made convenient, with a removable and mobile oil tank included for ease of service.

f) The entire machine is computer-controlled, with the hydraulic system featuring double proportional control. It comes with fault automatic alarm, ensuring reliable operation, high automation, and the ability to store data for up to 40 sets of moulds.

g) Three operation modes - "Manual", "Semi Auto", "Full Auto" - are available for selection.

h) The safety door is equipped with both electric and mechanical safety devices to prevent mould closure in case of the door opening, ensuring safe and reliable operation.

i) This machine offers two blowing functions - straight cutting and oblique cutting.

Technical Parameters:

Basic Specifications:

• Applicable materials: PE, PP, PVC, PA...
• Max product volume: 5L
• Number of heads: 1, 2, 3, 4
• Machine dimension (LxWxH): 3.6 x 2.3 x 2.36 meters
• Machine weight: 4.9 tons

Mould Clamping System:

• Mould clamping force: 90 KN
• Platen opening strokes: 180-480 mm
• Plate stroke: 300 mm
• Max mould sizes (WxH): 400 x 420 mm

Extrusion System:

• Screw diameter: 80 mm
• Screw slenderness ratio: 24 L/D
• Plasticizing ability (HDPE): 90 KG/H
• Screw heating stage/zone: 4 zones
• Screw heating power: 15.85 KW
• Screw fan power: 0.28 KW
• Extrusion motor power: 30 KW

Head:

• Head heating stage/zone: 10 zones
• Head heating power: 16.5 KW

Energy Consumption:

• Total machine power: 80 KW
• Oil motor power: 11 KW
• Air pressure: 0.6-0.8 MPA
• Compression air volume: 1.2 M3/H
• Cooling water volume: 0.4 M3/H

Applications:

MEPER 7D 70FD Extrusion Molding Machine is a versatile and efficient machine designed for various product application occasions and scenarios. With its advanced features and specifications, this machine is suitable for a wide range of industries and production needs.

Whether you are looking for a fully automatic blow moulding machine or a 4 cavity blow moulding machine, the MEPER 7D 70FD offers exceptional performance and reliability. Its ability to work with materials such as PE, PP, PVC, and PA makes it ideal for producing a variety of plastic products.

Manufactured in China, this machine meets the highest quality standards and is certified with CE/ISO9001:2008. Its minimum order quantity is just 1 set, and the price is negotiable, making it accessible for both small-scale and large-scale production facilities.

The packaging details include standard packaging for safe transportation, and the delivery time is between 25-35 work days. Payment terms accepted are L/C and T/T, providing flexibility for customers.

With a supply ability of 100 sets per month, the MEPER 7D 70FD Extrusion Molding Machine is a reliable and efficient solution for your production needs. It offers excellent plasticizing ability for HDPE (90), a machine weight of 4.9 tons, a screw diameter of 80mm, and a mould clamping force of 90KN.

Packing and Shipping:

Product Packaging:

The Extrusion Molding Machine is carefully packaged in a sturdy cardboard box to ensure its safe delivery. The machine is further protected with bubble wrap and foam padding to prevent any damage during transit.

Shipping:

We offer fast and reliable shipping services for the Extrusion Molding Machine. Once your order is processed, the machine will be shipped out within 1-2 business days. You will receive a tracking number to monitor the delivery status of your package.

FAQ:

Q: What is the brand name of the extrusion molding machine?

A: The brand name is MEPER.

Q: What is the model number of the extrusion molding machine?

A: The model number is 7D 70FD.

Q: Where is the extrusion molding machine manufactured?

A: The machine is manufactured in China.

Q: What certifications does the extrusion molding machine have?

A: The machine is CE/ISO9001:2008 certified.

Q: What are the payment terms for purchasing the extrusion molding machine?

A: The payment terms accepted are L/C and T/T.
